1. Introduction

Transformers are indispensable components in electrical power systems, enabling the efficient transmission and distribution of electrical energy. These static electrical devices transfer energy between two or more circuits through electromagnetic induction. This article delves into the basic concepts of transformers, their various types based on voltage levels and insulation media, and their real-world applications.

2. Basic Concepts

2.1 Principle of Operation

Transformers operate on the principle of electromagnetic induction. Their key components are:

• Primary Winding: Connected to the input power source.
• Secondary Winding: Connected to the load.
• Core: Typically made of laminated steel, providing a path for magnetic flux.

When alternating current flows through the primary winding, it generates a changing magnetic field in the core. This, in turn, induces a voltage in the secondary winding.

2.2 Turns Ratio

The turns ratio between the primary and secondary windings determines the voltage ratio:

V1 / V2 = N1 / N2

Where:

• V₁ and N₁ are the primary voltage and the number of turns.
• V₂ and N₂ are the secondary voltage and the number of turns.

2.3 Efficiency

Transformers are highly efficient, often exceeding 98% for large power transformers. Losses mainly come from:

• Copper losses (I²R losses in the windings).
• Core losses (hysteresis and eddy current losses in the core).

3. Types of Transformers Based on Voltage Levels

3.1 Power Transformers

• Voltage Levels: Typically above 33 kV.
• Applications: Power generation stations and transmission substations.
• Characteristics: Large in size, high capacity (up to hundreds of MVA), critical for stepping up voltage for long-distance transmission.

3.2 Distribution Transformers

• Voltage Levels: Up to 33 kV.
• Applications: Step down voltage for distribution to end consumers, such as homes and businesses.
• Characteristics: Smaller in size, lower capacity (usually up to 2500 kVA), used at the final stage of electrical distribution.

3.3 Instrument Transformers

• Current Transformers (CTs):
  • Voltage Levels: Various, depending on system voltage.
  • Applications: Measurement of high currents and isolation for metering and protection devices.
  • Characteristics: Steps down current in a fixed ratio.
• Voltage Transformers (VTs) or Potential Transformers (PTs):
  • Voltage Levels: Various, depending on system voltage.
  • Applications: Measurement of high voltages and isolation for protection and metering systems.
  • Characteristics: Steps down voltage in a fixed ratio.

4. Types of Transformers Based on Insulation Medium

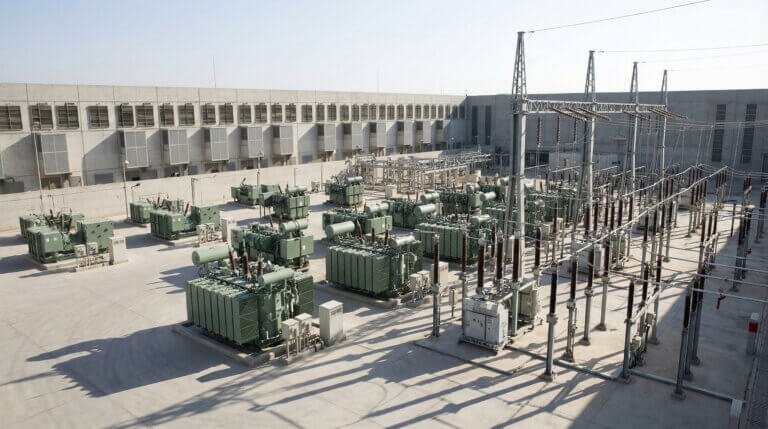

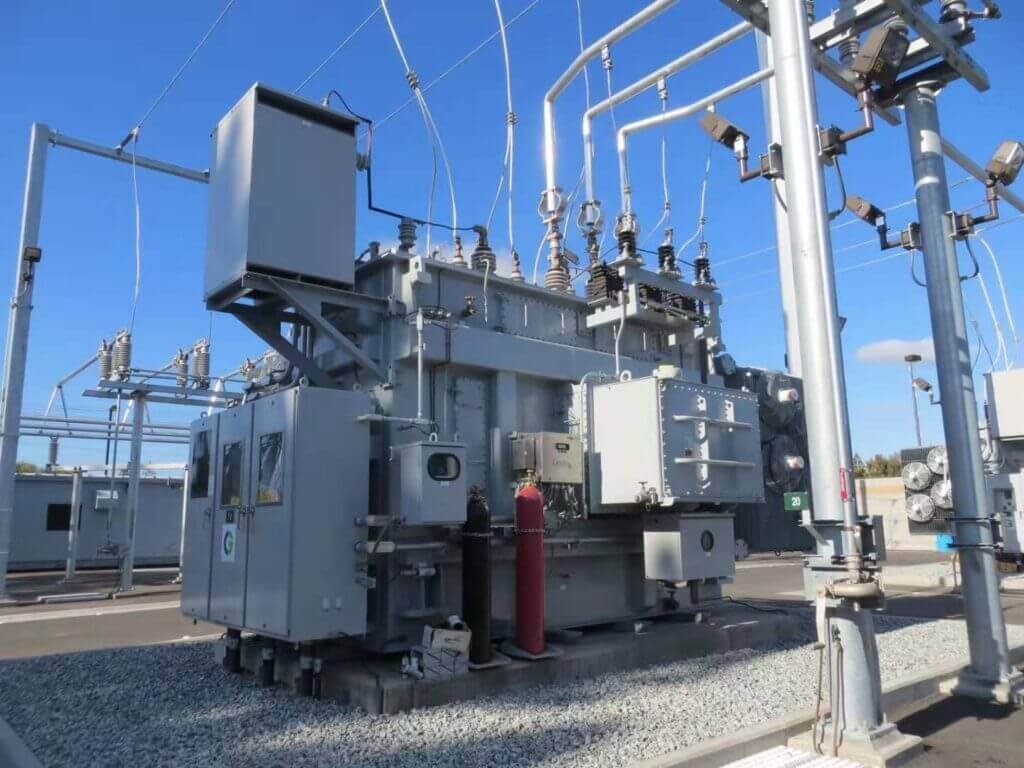

4.1 Oil-filled Transformers

• Voltage Levels: Up to 765 kV and above.
• Insulation Medium: Mineral oil or synthetic oil.
• Applications: Widely used in power generation and distribution systems.
• Characteristics: Excellent cooling and insulation properties, but require maintenance. Oil-filled transformers may pose environmental concerns due to potential oil leaks.

4.2 Dry-type Transformers

• Voltage Levels: Typically up to 35 kV.
• Insulation Medium: Air and solid insulation materials like epoxy resin.
• Applications: Used in indoor settings, areas with fire safety concerns, such as hospitals or high-rise buildings.
• Characteristics: Lower maintenance and environmentally friendly. Generally more expensive than oil-filled transformers and have lower overload capacity.

4.3 Gas-insulated Transformers

• Voltage Levels: Up to 550 kV.
• Insulation Medium: Sulfur hexafluoride (SF₆) or other insulating gases.
• Applications: High-voltage substations in urban areas with space constraints.
• Characteristics: Compact design and highly reliable, but expensive and require specialized handling due to the gas.

5. Other Types of Transformers

5.1 Autotransformers

• Voltage Levels: Applicable in both high-voltage and low-voltage systems.
• Applications: Used in power transmission systems for minor voltage adjustments, often in long-distance transmission lines.
• Characteristics: Uses a single winding as both primary and secondary, making it more economical for small voltage changes.

5.2 Three-phase Transformers

• Voltage Levels: Commonly used for industrial loads at 11 kV and above.
• Applications: Used in power generation, transmission, and industrial applications.
• Characteristics: Can be built as either three single-phase units or a single three-phase unit, depending on installation requirements.

5.3 Isolation Transformers

• Voltage Levels: Typically low voltage (e.g., 120V/120V), but also available for higher voltages.
• Applications: Provide galvanic isolation between circuits to enhance safety, reduce noise, or prevent electrical interference in industrial applications.
• Characteristics: Essential in sensitive electronics and safety-critical systems.

6. Applications of Transformers

6.1 Power Generation and Transmission

• Step-up Transformers: Used at power plants to increase voltage from around 20 kV to 400 kV or higher, enabling efficient long-distance transmission.
• Step-down Transformers: Reduce high transmission voltages (400 kV to 132 kV) for distribution to lower voltage grids.

6.2 Distribution

• Primary Distribution: Transforms voltage from 33 kV to intermediate levels (e.g., 11 kV).
• Secondary Distribution: Further steps down voltage to 415/240 V for residential and commercial use.

6.3 Industrial Applications

• Motor Drives and Arc Furnaces: Transformers are used in industrial environments to power equipment such as electric arc furnaces and heavy-duty motors.
• Rectifier Systems: Transformers feed AC into rectifier systems, which convert AC into DC for industrial processes.

6.4 Commercial and Residential Applications

• Building Power Distribution: Transformers step down voltage for building-level distribution, ensuring safe and reliable power delivery.
• Electronic Devices: Small transformers are integrated into everyday devices like laptop chargers and televisions to provide low-voltage power.

7. Conclusion

Transformers are fundamental to modern electrical systems, enabling the efficient transfer of energy over long distances and ensuring safe power distribution for industrial, commercial, and residential use. By understanding the various types of transformers, their voltage levels, and insulation media, electrical engineers can make informed decisions to meet the demands of different power applications. As technological advancements continue, research into improving transformer efficiency, reducing environmental impact, and minimizing size will further shape the future of power systems.
